The OrgChart templates display two fields: the employee's name and position. By default, only the position field wraps text based on the available space. The text will wrap into up to three lines, ensuring that the position is fully displayed without being cut off.

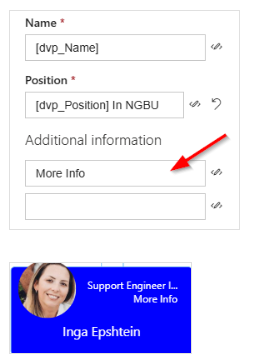

In advanced mode, if you add additional information lines, the text-wrapping behavior for the position field stops working. Each label will have only one line for the position text. If the text exceeds the available space, it will be truncated and display ellipses (...) at the end.

If you need to display more information, such as Office Location or other details, you can add them to the Position field.

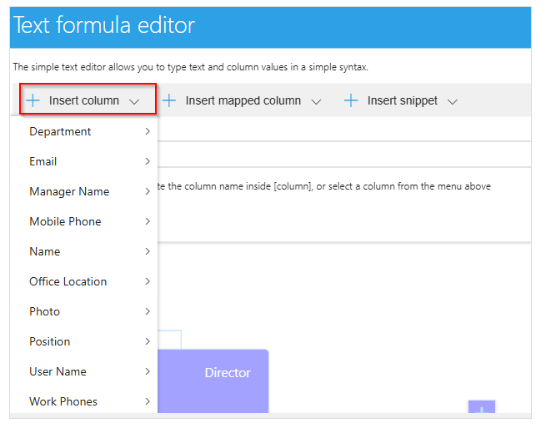

1. Click the Edit Formula icon,

2. Click Insert Column and choose the columns to be displayed

For example, you can add the Office Location field, Department, and more to the Position field.
